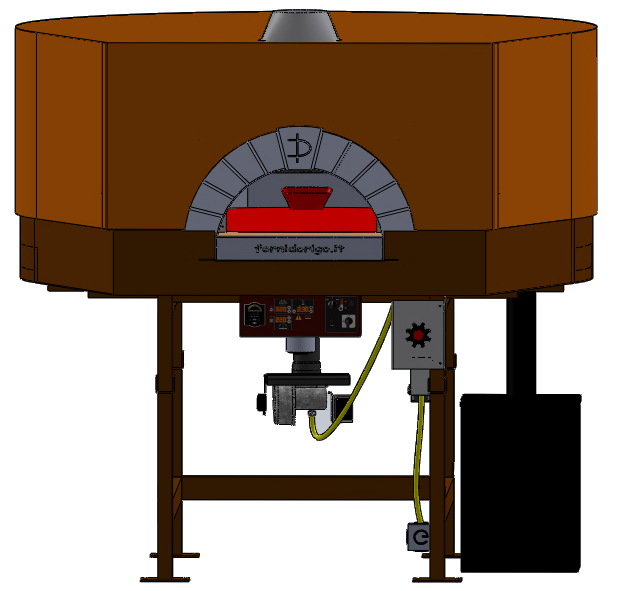

The "DORIGO OVENS" LG-MP4-EL models are designed for cooking with wood together with our gas burner that guarantees the highest yields at the lowest cost in the world market, positioned on the right, left or front to give maximum efficiency and to give the appearance theatrical with the addition of an electrical resistance infrared that reaches the temperature from 10 ° c to 220 ° c in 13 minutes.!
The infrared heating element located under the stove has a total power of 5.5 kW, if used in 100% or 2.5kw, if used in 50%. Provides immediate recovery of the heat losses of the cooking surface in a few minutes and is governed in a manual or automatic through the 2nd temperature probe.

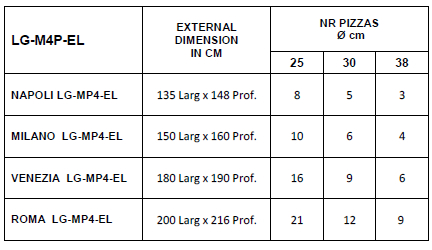

The "DORIGO OVENS" models LG-MP4-EL-are available in 4 versions.
The ovens are delivered already assembled with the possibility of disassembly to cross each wide door more than 70 cm. and can be moved with the cart, and in the case of removal can be dismantled and relocated to new premises.
We recommend this solution for the installation of 4 pieces in less than 3 hours by unskilled personnel using suitable lifting equipment recommended by us.

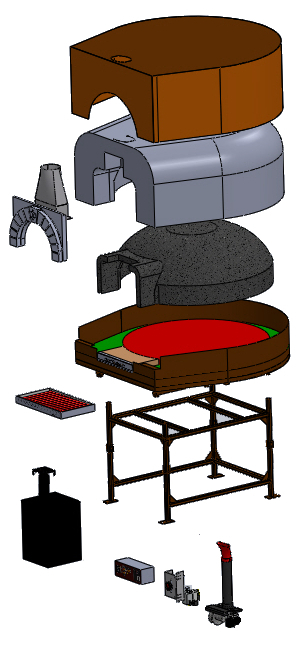

The "DORIGO OVENS" model LG-MP4-EL are supplied assembled and disassembled in 4 pieces: metal tank with insulation and stove in one piece support structure robust, monolithic dome built in vibrated super high alumina refractory concrete that is positioned externally to the floor and front arc with fitting built-in smoke, 20cm thick ceramic fiber insulation, copper colored metal top cover ashlar.

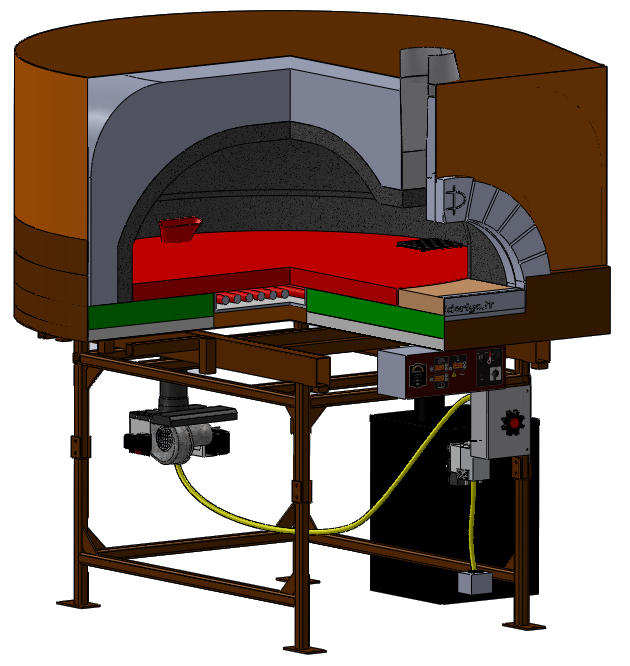

The curvature of the monolithic dome has a spherical shape that provides maximum aerodynamic and combustion of wood or gas and is sheltered by a sturdy metal frame with a thickness of 4mm.
The height from the floor to the roof 'of 44 cm and with the right relationship with the case of smoke leakage delivers significant energy savings and a huge thermal resistance. In the model "Rome" the height is of 48cm.
The cooking surface is in one piece with a thickness up to 80mm and have a size from 100-115-145-165 cm in diameter.
The density of vibrated refractory material in hobs and in the domes guarantees an enormous build up of heat resulting in energy savings.
The flue gas connection has a width of 197mm.
10 year warranty for the ovens, 3 years for oven and gas burner and 2 years for the electrical resistance infrared.
